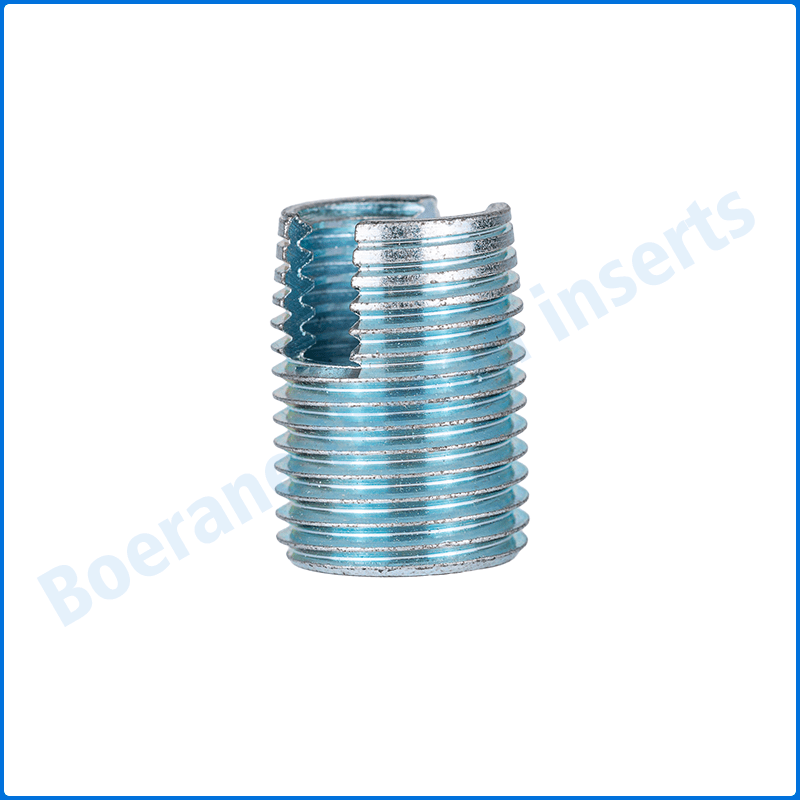

Carbon Steel Cutting Slot Self-tapping Insert, are cylindrical metal bushings that possess both internal and external threads. The material is carbon steel ,and the surface treatment can be zinc plated with yellow or blue or white color .They are designed for the unique purpose of forming threads as they are inserted into pre-drilled holes. Carbon Steel Cutting Slot Self-tapping Insert provide robust and wear-resistant threading solutions suitable for a wide range of materials, from durable high-strength steels to fragile plastics. These inserts, capable of self-threading, eliminate the necessity for pre-tapped holes.
| Drawing No. |
A Internal thread |
E External thread |
P Pitch |
L Length |
SW Hexagonal socket |
D Minimum borehole depth for blind holes |
| L 302.. .01 |
M2 |
4.5 |
0.5 |
6 |
– |
8 |
| L 302…02 |
M2.5 |
4.5 |
0.5 |
6 |
0 |
8 |
| L 302…03 |
M3 |
5 |
0.5 |
6 |
– |
8 |
| L 302…04 |
M3.5 |
6 |
0.75 |
8 |
– |
10 |
| L 302…05 |
M4 |
6.5 |
0.75 |
8 |
3.2 |
10 |
| L 302.. .06 |
M5 |
8 |
1 |
10 |
4.1 |
13 |
| L 302…07 |
M6(a) |
9 |
1 |
12 |
– |
15 |
| L 302…08 |
M6 |
10 |
1.5 |
14 |
4.9 |
17 |
| L 302…09 |
M8 |
12 |
1.5 |
15 |
6.6 |
18 |
| L 302…10 |
M10 |
14 |
1.5 |
18 |
8.3 |
22 |
| L 302…11 |
M12 |
16 |
1.5 |
22 |
10.1 |
26 |
| L 302…12 |
M14 |
18 |
1.5 |
24 |
– |
28 |
| L 302…13 |
M16 |
20 |
1.5 |
22 |
– |
27 |
| L 302…14 |
M18 |
22 |
1.5 |
24 |
– |
29 |
| L 302…15 |
M20 |
26 |
1.5 |
27 |
– |
32 |
| L 302…16 |
M22 |
26 |
1.5 |
30 |
– |
36 |
| L 302…17 |
M24 |
30 |
1.5 |
30 |
– |
36 |
| L 302…18 |
M27 |
34 |
1.5 |
30 |
– |
36 |
| L 302…19 |
M30 |
36 |
1.5 |
40 |
– |
46 |
