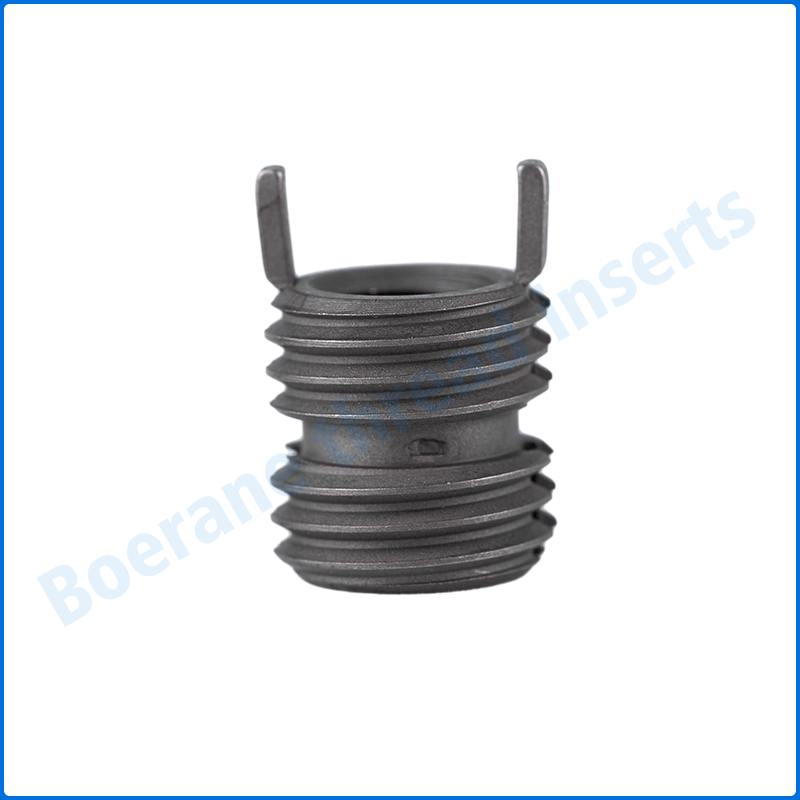

UNC/UNF Light Weight Key Locking Inserts enjoy widespread utilization in diverse global markets. Key Locking Thread Inserts find application in military vehicles and aircraft, serving critical roles in missions for space exploration. Thread Insert products play a pivotal role in original equipment, enhancing the thread-holding capabilities in softer base materials like aluminum and magnesium. Additionally, Key locking threaded inserts serve as reliable solutions for thread repair, effectively replacing stripped or damaged threads.
Material: In Carbon Steel – C1215 or equivalent ; In Stainless Steel – 303 or equivalent
Keys – 302 CRES or equivalent
Finish: Carbon Steel – Zinc Phosphate ; Stainless Steel – Passivated
Tolerances: ±.010 inch or ±.25 mm unless specified otherwise.
| Part number |
Dimensions |
| Standard “KN” |
Self-locking “KNL” |
Internal thread Ø Tol.- 3B |
External thread Ø Tol.- 2A mod. |
Shear engagement inch² (mm²) |
L1 inch (mm) |
L4 inch (mm) |
| KN1032J |
|
10-32 |
5/16-18 |
0,1517 (97,9) |
0,31 (7,87) |
|
|
KNL 1032J |
0,0945(61,0) |
0,31 (7,87) |
| KN1024J |
|
10-24 |
5/16-18 |
0,1517 (97,9) |
0,31 (7,87) |
|
|
KNL 1024J |
0,0945 (61,0) |
0,31 (7,87) |
| KN428J |
|
1/4-28 |
3/8-16 |
0,2371 (153,0) |
0,37 (9,40) |
|
|
KNL .428J |
0,1726(111,4) |
0,33 (8,38) |
| KN420J |
|
1/4- 20 |
3/8-16 |
0,2371 (153,0) |
0,37 (9,40) |
|
|
KNL .420J |
0,1726(111,4) |
0,36(9,14) |
| KN524J |
|
5/1 6-24 |
7/16-14 |
0,3049 (196,7) |
0,43(10,9) |
|
|
KNL .524J |
0,2321 (149,7) |
0,34 (8,64) |
| KN518J |
|
5/16-18 |
7/16-14 |
0,3049 (196,7) |
0,43 (10,9) |
|
|
KNL 518J |
0,2321 (149,7) |
0,37 (9,40) |
| KN624J |
|
3/8-24 |
1/2-13 |
0,4299 (277,4) |
0,50(12,7) |
|
|
KNL 624J |
0,3366(217,2) |
0,36 (9,14) |
| KN616J |
|
3/8-16 |
1/2-13 |
0,4299 (277,4) |
0,50(12,7) |
|
|
KNL .61 6J |
0,3366 (217,2) |
0,40(10,16) |
| KN720J |
|
7/16-20 |
9/16-12 |
0,5665 (365,5) |
0,56(14,2) |
|
|
KNL 720J |
0,4606 (297,2) |
0,41(10,41) |
| KN714J |
|
7/16-14 |
9/16-12 |
0,5665 (365,5) |
0,56(14,2) |
|
|
KNL 714J |
0,4606 (297,2) |
0,45(11,43) |
| KN820J |
|
1/2-20 |
5/8-11 |
0,7175 (462,9) |
0,62 (15,8) |
|
|
KNL820J |
0,5906 (381,0) |
0,42 (10,67) |
| KN813J |
|
1/2-13 |
5/8-11 |
0,7175 (462,9) |
0,62 (15,8) |
|
|
KNL .813J |
0,5906 (381,0) |
0,47 (11,94) |
