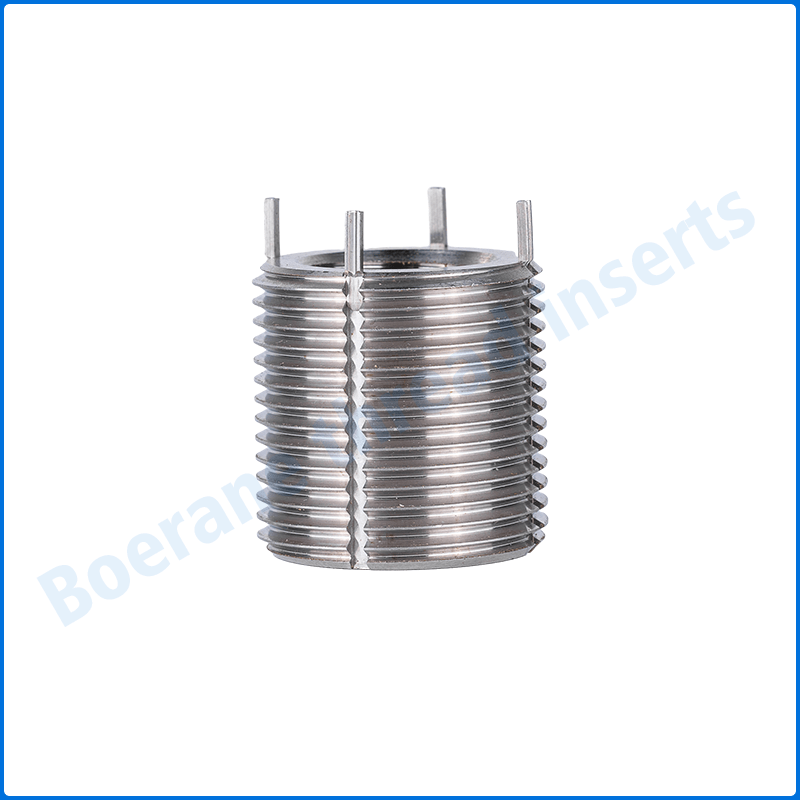

Thinwall key locking inserts offer superior strength and are engineered to withstand substantial rotational and pullout forces. Once these inserts are meticulously installed into the tapped hole, the locking keys on each insert are expertly driven down through the threads of the parent material, resulting in a secure and permanent lock in place.
Available in both inch and metric thread sizes, the stainless steel solid bushing configuration of Key inserts guarantees the quality of the internal thread prior to installation. Installation is a straightforward process, requiring no specialized tools. Standard taps and drills are employed for hole preparation. Additionally, the pre-assembled self-broaching keys ensure precise depth setting and provide a robust defense against any unintended rotation.
Material: In Carbon Steel – C1215 or equivalent ; In Stainless Steel – 303 or equivalent
Keys – 302 CRES or equivalent
Finish: Carbon Steel – Zinc Phosphate ; Stainless Steel – Passivated
Tolerances: ±.010 inch or ±.25 mm unless specified otherwise.
| Part number | Dimensions | |||||
| Standard “KNM” | Self-locking “KNML” | Internal thread Ø Tol.- 5H | External thread Ø Tol.- 4h | Shear engagement mm² | L1 ± 0,3 | L4 |
| KNM5X0,8 | M5X0,8 | M8X1,25 | 104,9 | 8 | ||
| KNML 5X0,8 | 83,1 | 7,6 | ||||
| KNM6X1,0 | M6X1,0 | M10X1,25 | 177,7 | 10 | ||
| KNML6X1,0 | 152,7 | 8,2 | ||||
| KNM8X1,25 | M8X1,25 | M12X1,25 | 266,7 | 12 | ||
| KNML 8X1,25 | 242,5 | 9,5 | ||||
| KNM10X1,5 | M10X1,5 | M14X1,5 | 341,6 | 14 | ||
| KNML 10X1,5 | 316,4 | 10,0 | ||||
| KNM12X1,75 | M12X1,75 | M16X1,5 | 470,2 | 16 | ||
| KNML12X1,75 | 441,4 | 11,2 | ||||
| Part number | Installation dimensions | Removal dimensions | |||||
| modified Core-Ø* | C’Sink-Ø +0,25 | Installation thread | Hand installation tool part-no. | Drill | |||
| Thread Tol.- 6H | Depth L2 min . | Ø | Depth | ||||
| KNM5X0,8 | 6.90
+0, 100 -0,025 |
8,25 | M8X1,25 | 9,5 | KRTM5-01/ KNT01-M5X0, 8AU | 5,5 | 4,00 |
| KNML5X0,8 | |||||||
| KNM6X1,0 | 8,80 +0,100 -0,025 | 10,25 | M10X1 ,25 | 11,5 | KRTM6-01/ KNT01-M6X1,0AU | 7,5 | 4,75 |
| KNML6X1,0 | |||||||
| KNM8X1,25 | 10,80 +0,100 -0,025 | 12,25 | M12X1,25 | 13,5 | KRTM8-01/ KNTO1-M8X1 ,25AU | 9,5 | 4,75 |
| KNML8X1,25 | |||||||
| KNM10X1,5 | 12,80 +0,130 -0,025 | 14,25 | M14X1,5 | 15,5 | KRTM10-01/ KNT01-M10X1,5AU | 11,5 | 4,75 |
| KNML10X1,5 | |||||||
| KNM12X1,75 | 14,75 +0,100 -0,025 | 16,25 | M16X1,5 | 17,5 | KRTM12-01/ KNT01-M12X1,75AU | 13,5 | 4,75 |
| KNML12X1,75 | |||||||
