Heavy Duty Self-locking Key Locking Insert
  1. Thumbnail
  2. Thumbnail
  3. Thumbnail

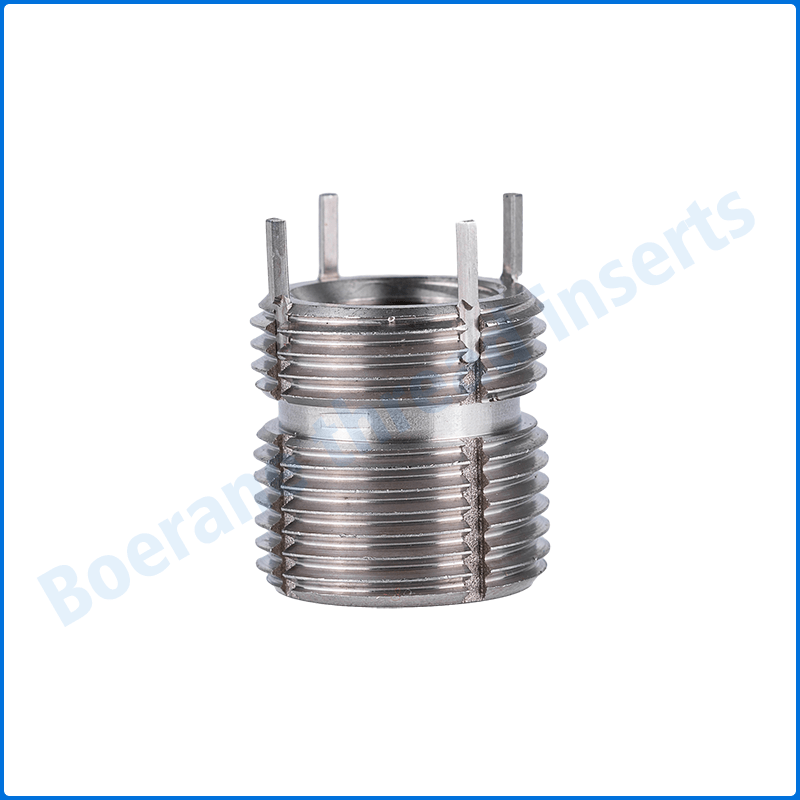

Heavy Duty Self-locking Key Locking Insert

Product name Heavy Duty Self-locking Key Locking Insert
Brand Name Boerane
Surface treatment Carbon Steel-Zinc Phosphate ; Stainless Steel-Passivated
Material Stainless steel303(1.4305),Carbon steel
Type Heavy Duty Self-locking
Lead time Stock
Application Aviation,Automotive,Machinery, Motorsport and other industry
Reliability test Mechanical dimensions,hardness test.salt spray endurance test
Place of Origin Shen Zhen,China
Certificate ISO 9001:2015;IATF 16949:2016;SGS
OEM service Acceptable
Send Inquiry Live Chat
  • Product Details
  • FAQs
  • Packing & Delivery
  • Catalog Download

A heavy duty self-locking key locking insert, often referred to as a self-locking Keensert, is a type of threaded insert that combines the features of a standard Key Locking Insert (commonly known as a Keensert) with a self-locking mechanism. This combination makes it suitable for applications where both strong threads and resistance to vibrational loosening are required.

Material: In Carbon Steel – C1215 or equivalent ; In Stainless Steel – 303 or equivalent

Keys – 302 CRES or equivalent

Finish:  Carbon Steel – Zinc Phosphate ; Stainless Steel – Passivated

Tolerances: ±.010 inch or ±.25 mm unless specified otherwise.

Part number Dimensions
Standard “KNHM” Self-locking “KNHML” Internal thread Ø Tol.- 5H External thread Ø Tol.- 4h Shear engagement mm² L1

± 0,3



L4
KNHM4X0,7

M4X0,7



M8X1,25

 104,9

8
KNHML4X0,7 83,1 8,0
KNHM5X0,8

M5X0,8



M10X1,25

 177,7

10
KNHML5X0,8 152,7 8,7
KNHM6X1,0

M6X1,0



M12X1,25

 266,7

12
KNHML6X1,0 242,5 9,5
KNHM8X1,25

M8X1,25



M14X1,5

 341,6

14
KNHML8X1,25 316,4 10,0
KNHM10X1,5

M10X1,5



M16X1,5

 470,2

16
KNHML10X1,5 441,4 10,0
KNHM12X1,75

M12X1,75



M18X1,5

 608,5

18
KNHML12X1,75 561,8 10,7
Part number Dimensions
Standard “KNHM” Self-locking “KNHML” Internal thread Ø Tol.- 5H External thread Ø Tol.- 4h Shear engagement mm² L1

± 0,3



L4
KNHM14X2,0

M14X2,0



M20X1,5

 770,5

20
KNHML14X2,0 724,4 12,4
KNHM16X2,0

M16X2,0



M22X1,5

 896,8

22
KNHML16X2,0 855,2 12,4
KNHM18X1,5

M18X1,5



M24X1,5

 1084,4

24
KNHML18X1,5 1051,5 16,8
KNHM20X2,5

M20X2,5



M30X2,0

 1774,3

30
KNHML20X2,5 1736,4 17,5
KNHM24X3,0

M24X3,0



M33X2,0

 2189,4

33
KNHML24X3,0 2161,9 19,0

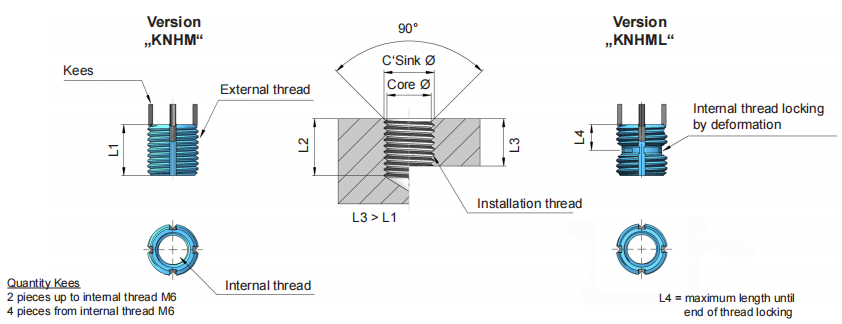

Part number

 Installation dimensions Removal dimensions


modified

Core-Ø*



C’Sink-Ø

+0,25

 Installation thread Hand installation tool part-no. Drill
Thread Tol.- 6H Depth L2 min. Ø Depth
KNHM4X0,7 6,90 +0,100

-0,025



8,25



M8X1,25



9,5

 KRTM4-02 / KNT01- HM4X0,7AU

5,5



4,00
KNHML4X0,7
KNHM5X0,8 8,80 +0,100

-0,025



10,25



M10X1,25



12,5

 KRTM5-02 / KNT01- HM5X0,8AU

7,5



4,75
KNHML5X0,8
KNHM6X1,0 10,80+0,100

-0,025



12,25



M12X1,25



14,5

 KRTM6-02 / KNT01-HM6X1,0AU

9,5



4,75
KNHML6X1,0
KNHM8X1,25 12,80+0,130

-0,025



14,25



M14X1,5



16,5

 KRTM8-02 / KNT01-HM8X1,25AU

11,5



4,75
KNHML8X1,25
KNHM10X1,5 14,75+0,130

-0,025



16,25



M16X1,5



18,5

 KRTM10-02 / KNT01-HM10X1,5AU

13,5



4,75
KNHML10X1,5
KNHM12X1,75 16,75+0,130

-0,025



18,25



M18X1,5



20,5

 KRTM12-02 / KNT01-HM12X1,75AU

15,5



4,75
KNHML12X1,75


Part number

 Installation dimensions Removal dimensions


modified

Core-Ø*



C’Sink-Ø

+0,25

 Installation thread Hand installation tool part-no. Drill
Thread Tol.- 6H Depth L2 min. Ø Depth
KNHM14X2,0 18,75+0,130

-0,025



20,25



M20X1,5



22,5

 KRTM14-02 / KNT03- HM14X2,0AU

17,50



4,75
KNHML14X2,0
KNHM16X2,0 20,50+0,130

-0,025



22,25



M22X1,5



24,5

 KRTM16-02 / KNT03- HM16X2,0AU

17,75



6,35
KNHML16X2,0
KNHM18X1,5 22,50+0,130

-0,025



24,25



M24X1,5



26,5

 KRTM18-02 / KNT03- HM18X1,5AU

19,75



6,35
KNHML18X1,5
KNHM20X2,5 28,00+0,130

-0,025



30,25



M30X2,0



34,5

 KRTM20-02 / KNT03-HM20X2,5AU

25,75



6,35
KNHML20X2,5
KNHM24X3,0 31,00+0,130

-0,025



33,25



M33X2,0



37,5



KNT03-HM24X3,0AU



28,75



6,35
KNHML24X3,0

Q: Are you a trading company or a manufacturer?

A: We are a manufacturer over 20 years in Shen Zhen,China .

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 7days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples for free, but no shipping fee.

Q: What are your payment terms?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. Welcome to other terms.

Q: What are your price terms?

A: EXW/FOB/CIF/CFR/FCA/CPT/CIP etc.

Q: What is your product range?

A: Our product range includes key locking insert, self taping thread insert, wire thread insert, tailless thread insert installation tool, thread repair kit, etc. We strictly implement various quality standards such as GB, ISO, DIN, JIS, AISI NFE, BSW, etc., and also accept non-standard products.

Q: How to guarantee the Quality of Industrial Parts?

A: We have been in fastener field over 20 years with full experience. And there are 5 checks in the whole processing, We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts production.

Q: Why should I choose you? What are your advantages?

A: We are a professional manufacturer with many years of production and management experience in the field of fasteners. We can provide our customers with good solutions in terms of production design, production technology, packaging and after-sales service. Customer satisfaction is our only pursuit.
