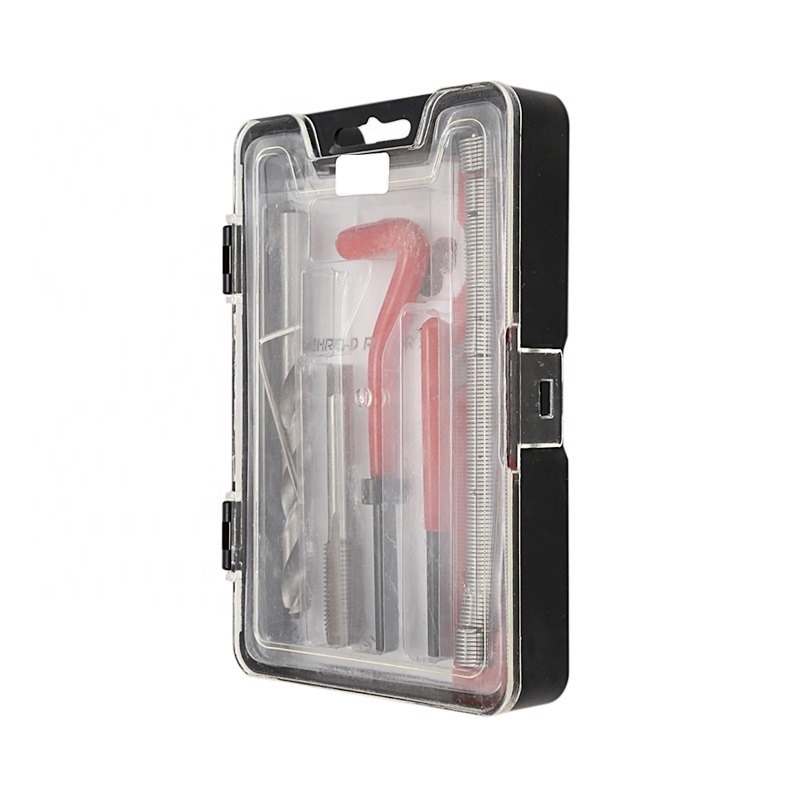

m 8 x 1.0 Metric Thread Repair Tool Kit is effectively the most economical kit should you require tools for a range of many different sizes.
A quantity of thread inserts, the appropriate size drill, high speed steel tap, installation tool spanner, a tang break tool in the kit.
1)prevent costly machine downtime range kits
2)a multiple size kit format
3)are widely used in maintenance workshops
Installation Process:
1)Drill out damaged thread using correctly sized drill-bit(supplied)
2)Tap re-drilled hole using tap supplied
3)Load coiled insert into applicator
4)Screw coil into casting
5)Using lug breaking tool,break off tang on insert
6)Thread is repaired and ready to use
Technical Parameters:
| CUTHARS |
 |
 |
 |
 |
 |
| Article |
| Number |
HSS Helical Tap |
HSS Twist Drill |
Insertion Tool |
Break-off Tang |
Inserts |
| BA005 |
M5*0.8 |
5.2mm |
NO.5 |
NO.5 |
25 |
| BA006 |
M6*1 |
6.2mm |
NO.6 |
NO.6 |
25 |
| BA008 |
M8*1.25 |
8.3mm |
NO.8 |
NO.8 |
25 |
| BA010 |
M10*1.5 |
10.3mm |
NO.10 |
NO.10 |
25 |
| BA012 |
M12*1.75 |
12.4mm |
NO.12 |
NO.12 |
10 |
| BA014 |
M14*2.0 |
14.4mm |
NO.14 |
NO.14 |
10 |
| BA014G1 |
M14*1.25 |
NO.14 |
NO.14 |
10 |
| BA014G2 |
M14*1.5 |
NO.14 |
NO.14 |
10 |
| BA001C |
10-24UNC |
5.2mm |
NO.8 |
NO.8 |
25 |
| BA002C |
12-24UNC |
5.8mm |
NO.8 |
NO.8 |
25 |
| BA003C |
1/4-20UNC |
6.7mm |
NO.9 |
NO.9 |
25 |
| BA004C |
5/16-18UNC |
8.3mm |
NO.10 |
NO.10 |
25 |
| BA005C |
3/8-16UNC |
9.9mm |
NO.12 |
NO.12 |
15 |
| BA006C |
7/16-14UNC |
11.6mm |
NO.14 |
NO.14 |
10 |
| BA007C |
1/2-13UNC |
13.0mm |
NO.15 |
NO.15 |
10 |
| BA001F |
10-32UNF |
5.1mm |
NO.8 |
NO.8 |
25 |
| BA002F |
1/4-28UNF |
6.7mm |
NO.9 |
NO.9 |
25 |
| BA003F |
5/16-24UNF |
8.3mm |
NO.11 |
NO.11 |
25 |
| BA004F |
3/8-24UNF |
9.8mm |
NO.13 |
NO.13 |
15 |
| BA005F |
7/16-20UNF |
11.5mm |
NO.14 |
NO.14 |
10 |
| BA006F |
1/2-20UNF |
13.0mm |
NO.15 |
NO.15 |
10 |
